Streamliner Design, Faster & Cheaper

Streamliner's faster and cheaper design
with Sculptor™

DRAG -18%
SPEED +47%
DOWN FORCE +400%

What is this Vehicle?

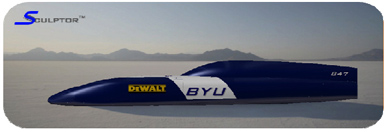

In land speed racing, a streamliner is a long, slender, high-speed vehicle with enclosed wheels. Three times a year vehicles of this kind participate in races at the Bonneville salt flats in Utah, USA. This particular Streamliner is an all electric streamliner weighing less than 500 kg that was developed by Brigham Young University in Provo, Utah, USA. The University is attempting to break a land speed record for light electric vehicles.

So What?

A new streamliner design needed to be invented, to improve the current top speed record in its category—219 km/h. A very efficient aerodynamic design was needed to reach this goal, while safety requirements had to be respected. Besides that, design cost and time had to be minimized.

Did They Succeed?

Sculptor™, coupled with a Multi-Objective Optimization code, allowed finding the optimal vehicle aerodynamic design in less than one week, while with wind tunnels or only CFD codes it would have taken several weeks or months. The shape was substantially changed, and an estimated 47% speed increase was reached. At the same time, safety was increased by 400%. This approach allowed to completely define the designs in one week, without the need of any preliminary wind tunnel tests. Moreover, Sculptor™ avoided time consuming operations on the Computer Aided Design (CAD) vehicle model and on the computational grid, since its morphing takes place over the CFD model directly.

Details

The surface of the streamliner needed to be shaped over a defined frame. The front end and the under-carriage had to be designed so that its aerodynamic design would generate low drag force with the needed down force. The first was beneficial in achieving the top-speed record, the second was necessary to keep the vehicle down to the ground and allow the necessary safety and traction.

Sculptor™'s morphing technology was applied over a Computational Fluid Dynamic (CFD) model of the vehicle, to define its optimal external skin surface. The original mesh was read into Sculptor™, and the model was prepared for morphing.

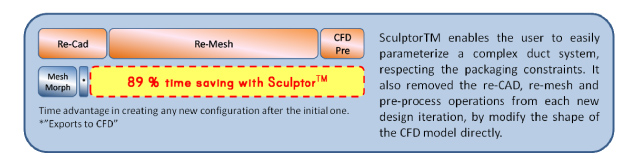

Using Arbitrary Shape Deformation (ASD) volumes, different configurations were instantly tested, without the need of re-creating the mesh. By moving the control points, new configurations were created immediately and then submitted to CFD. Finally, the configuration giving the best results was chosen.

CFD and Sculptor:™ faster and cheaper design

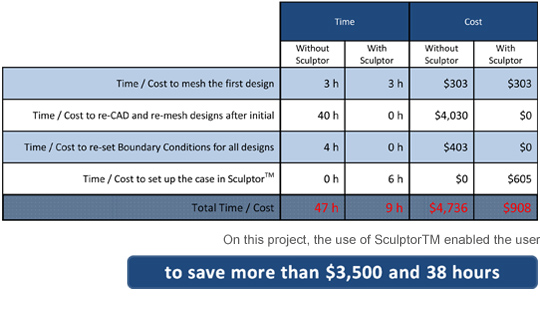

Sculptor™, coupled with a CFD code, allowed finding the optimal aerodynamic design in a few days, while CFD only would have taken several weeks. The total costs were 81% less with respect to the traditional design method. In the table below the breakdown of the costs is presentd, based on the estimation of man-hour cost of ($90 / hour), CFD code hourly cost ($10.75 / hour) and a Sculptor™ hourly cost of ($10.75 / hour). 80 designs needed to be evaluated.

About Sculptor™

Sculptor™ is developed by Optimal Solutions Software LLC, based in Idaho, USA. The Optimal Solutions Management team is comprised of some of the most experienced CFD-based shape optimization personnel in the business. Since 1990, the re-search team has expended thousands of man-hours in design-ing and refining the Sculptor™ software program to its pre-sent form. Through the development of the Sculptor™ world-class, patent-pending product family, Optimal Solutions has been able to effectively address the current barriers that pre-vent the efficient use of digital simulation.

Apply Sculptor to your model for free

The team at Optimal Solutions Software is happy to perform a no-cost initial design assessment on your model. Contact Us today and we will obtain the deformation constraints from you and demonstrate how Sculptor can save you time and money. We have worked with all sizes of companies and have NDA's in place with most major firms and can quickly get to work on your model.
